Spectrometers

Insion Micro Spectrometer Success Factors: Stability and Robustness

UV/VIS
Technical Data

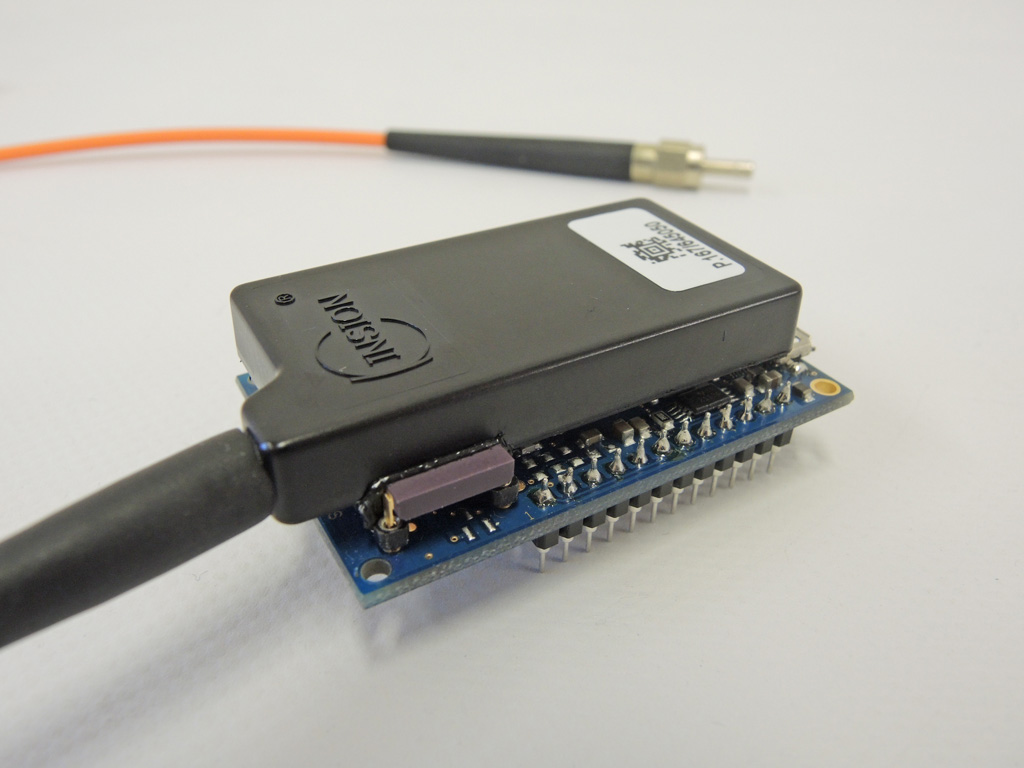

  • Spectral Range:350 - 850 nm (330 – 1050 nm accessible)
  • Fiber:Ø 300 / 330 µm; NA = 0.22
  • Spectral Resolution:< 10 nmFWHM / 3.5 nmPixel
  • Stray light Attenuation:> 17 dB with GG495 at 470 nm (30 dB using SC30)
  • Spectral Accuracy:2 nm (typ. 1 nm)
  • Sensitivity:> 65 E12 cts x nm / Ws at 650 nm
  • Signal to Noise Ratio:≥ 5000 at Tintergration = 2 ms
  • Dynamic Range:> 5.000
Additional Data
  • Dimensions (LxWxH):54 x 32 x 9.1mm
  • Weight:50g
  • Fiber Length/Finishing:450mm; +50/- 0mm; SMA
  • Detector Array:CMOS
  • Electronics:16 bit; UART; USB optional
  • Storage Temperature:- 40°C to +60°C
  • Operating Temperature:0°C to +40°C

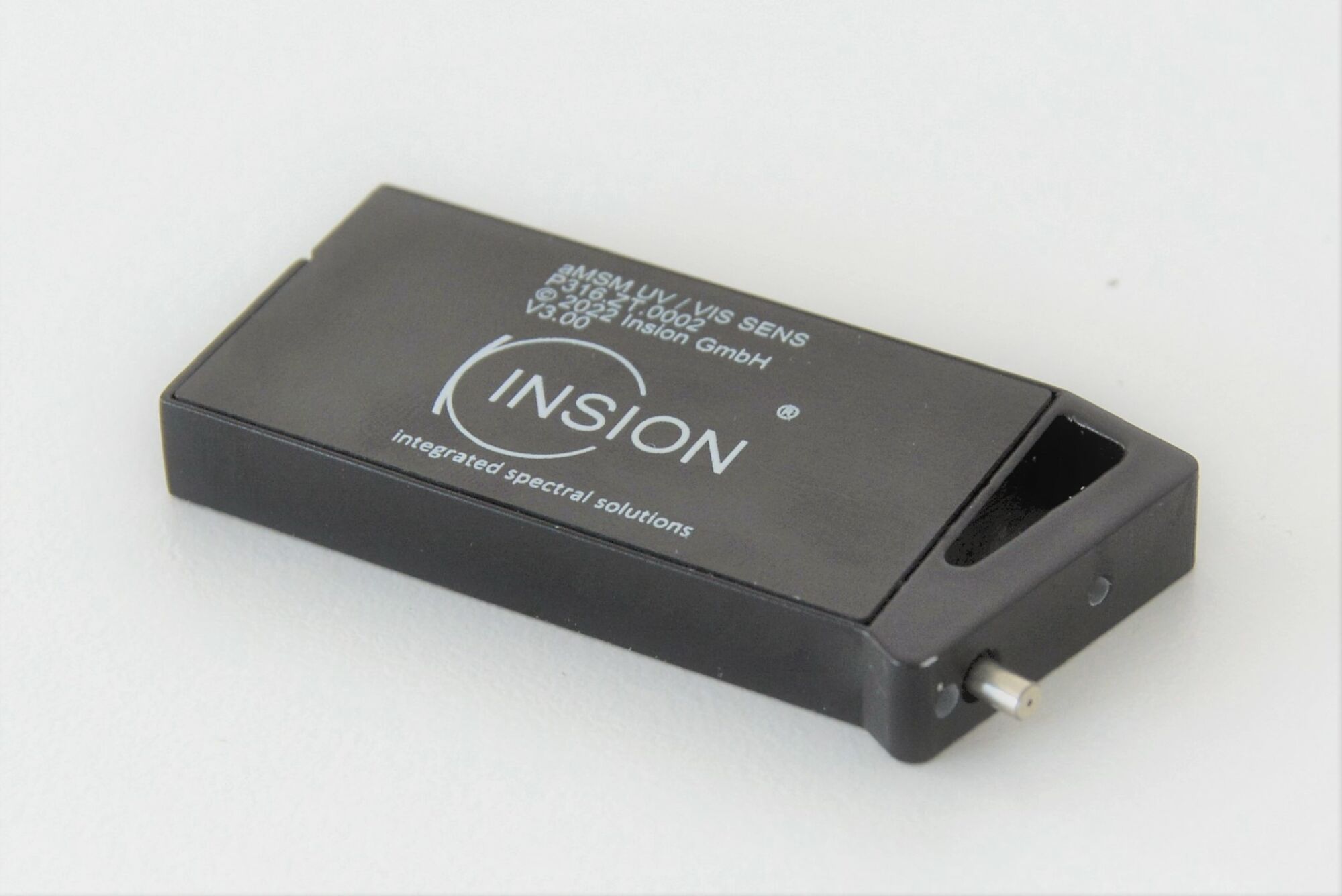

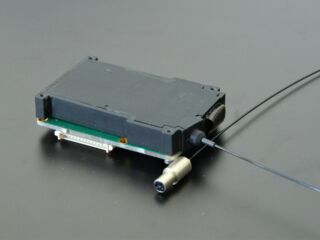

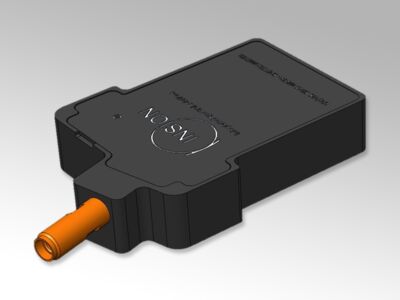

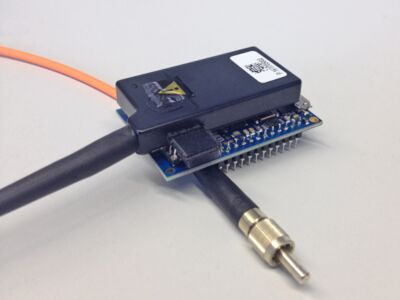

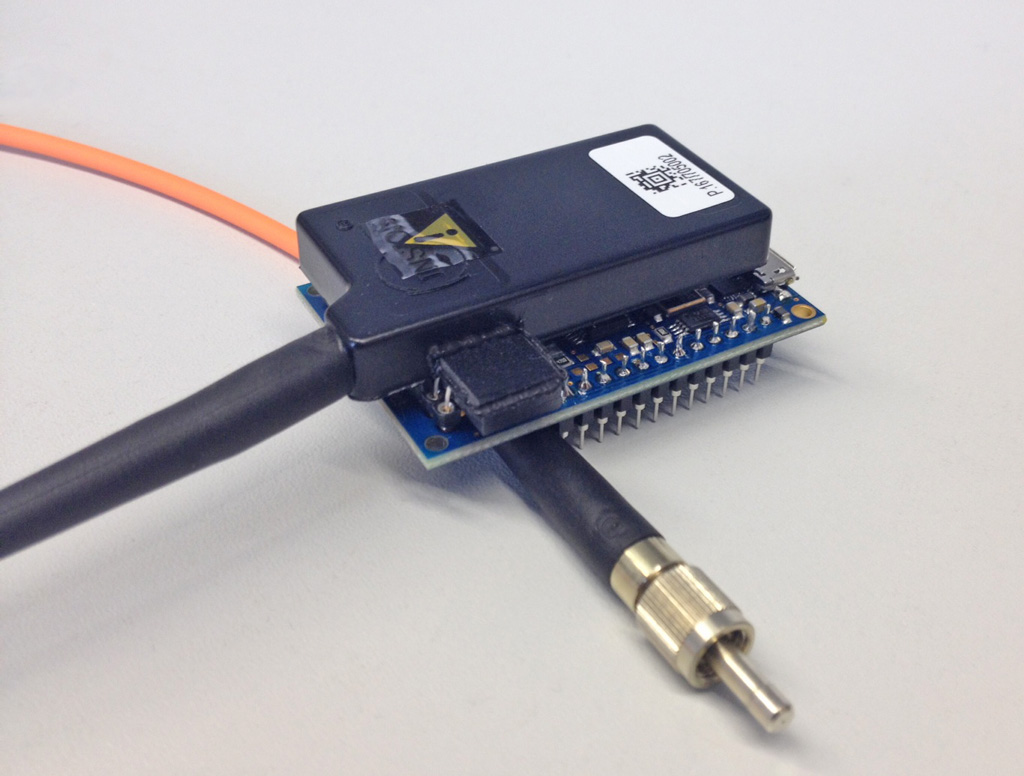

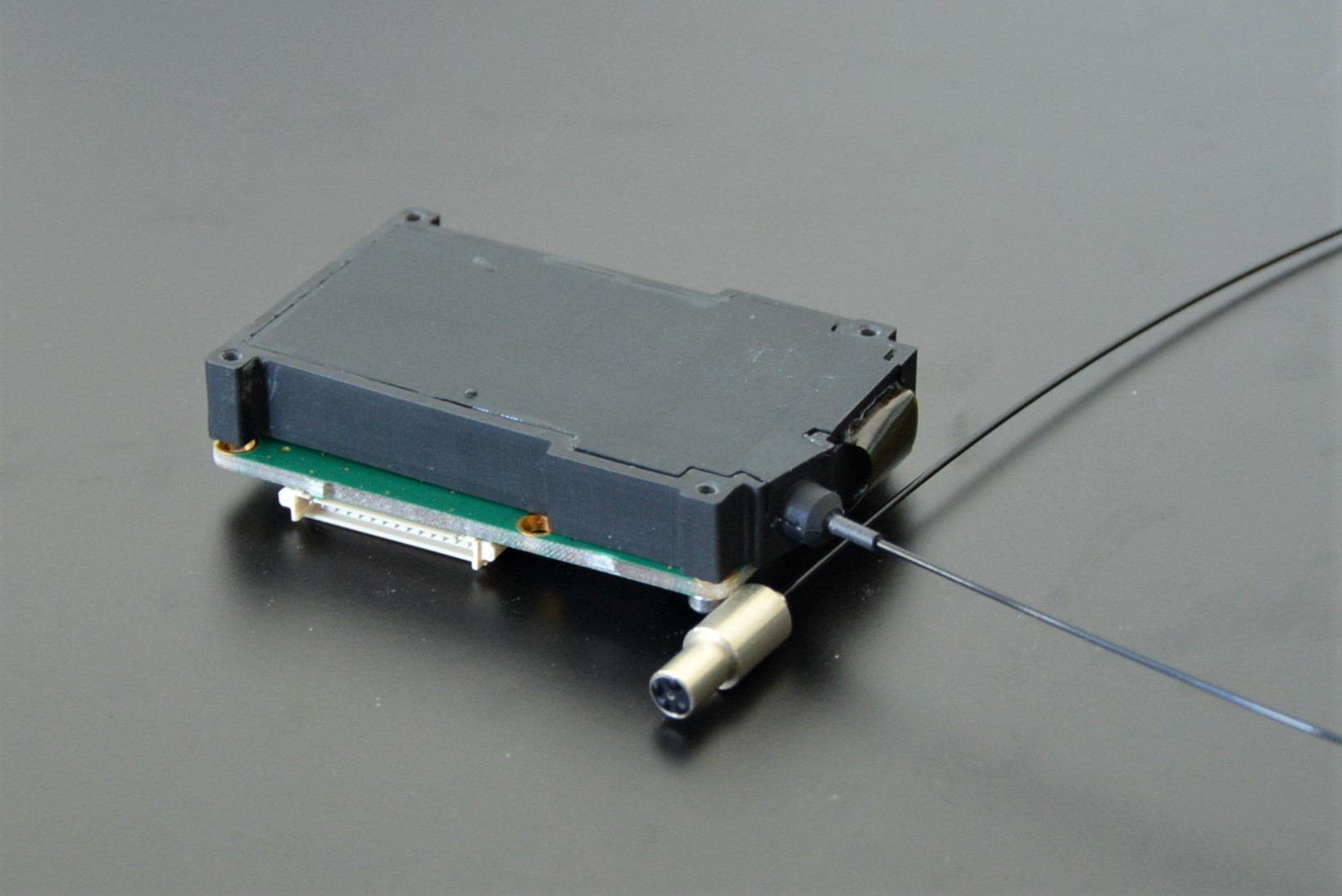

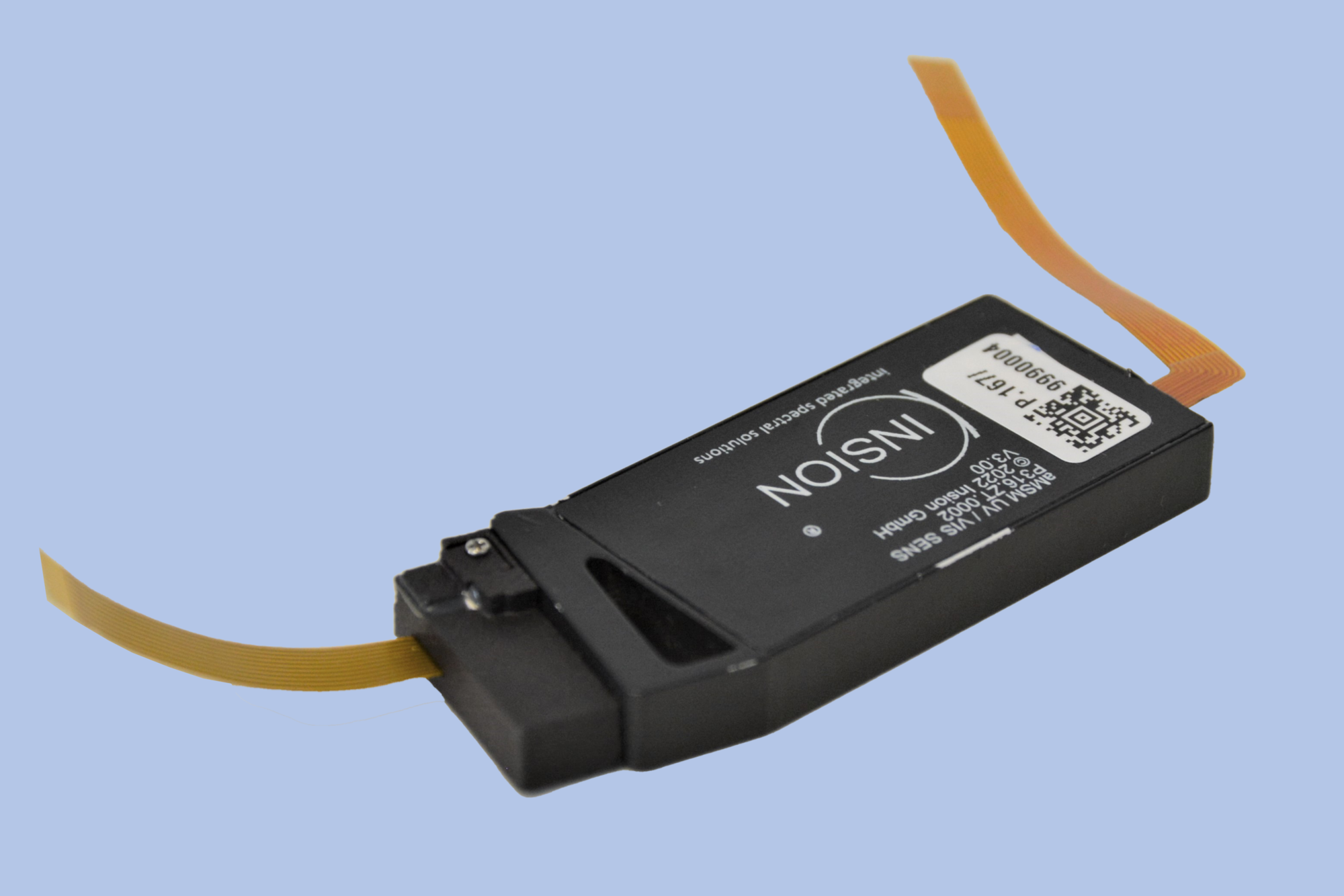

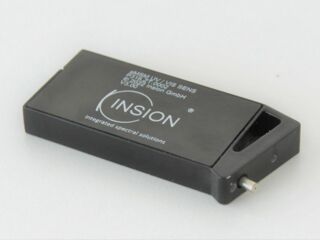

UV/VIS SENS
Download PDF datasheet
Technical Data
  • Spectral Range:350 - 850 nm (330 – 1050 nm accessible)
  • Fiber:Ø 300 / 330 µm; NA = 0.22
  • Spectral Resolution:< 10 nmFWHM / 1.96 nmPixel
    < 5 nmFWHM / 1.96 nmPixel by slit version
  • Stray light Attenuation:> 17 dB with GG495 at 470 nm (30 dB using SC30)
  • Spectral Accuracy:2 nm (typ. 1 nm)
  • Sensitivity:> 19 E15 cts x nm / Ws at 650 nm
  • Signal to Noise Ratio:≥ 5000 at Tintergration = 2 ms
  • Dynamic Range:> 5.000
Additional Data
  • Dimensions (LxWxH):54 x 42 x 9.1mm
  • Weight:50g
  • Fiber Length/Finishing:450mm; +50/- 0mm; SMA
  • Detector Array:SCMOS
  • Electronics:16 bit; UART; USB optional
  • Storage Temperature:- 40°C to +60°C
  • Operating Temperature:0°C to +40°C

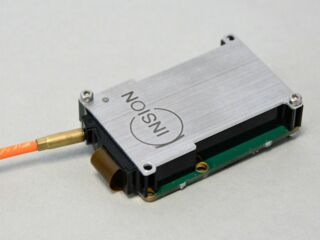

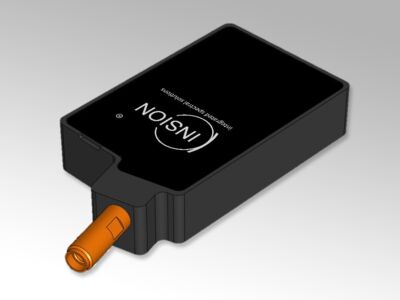

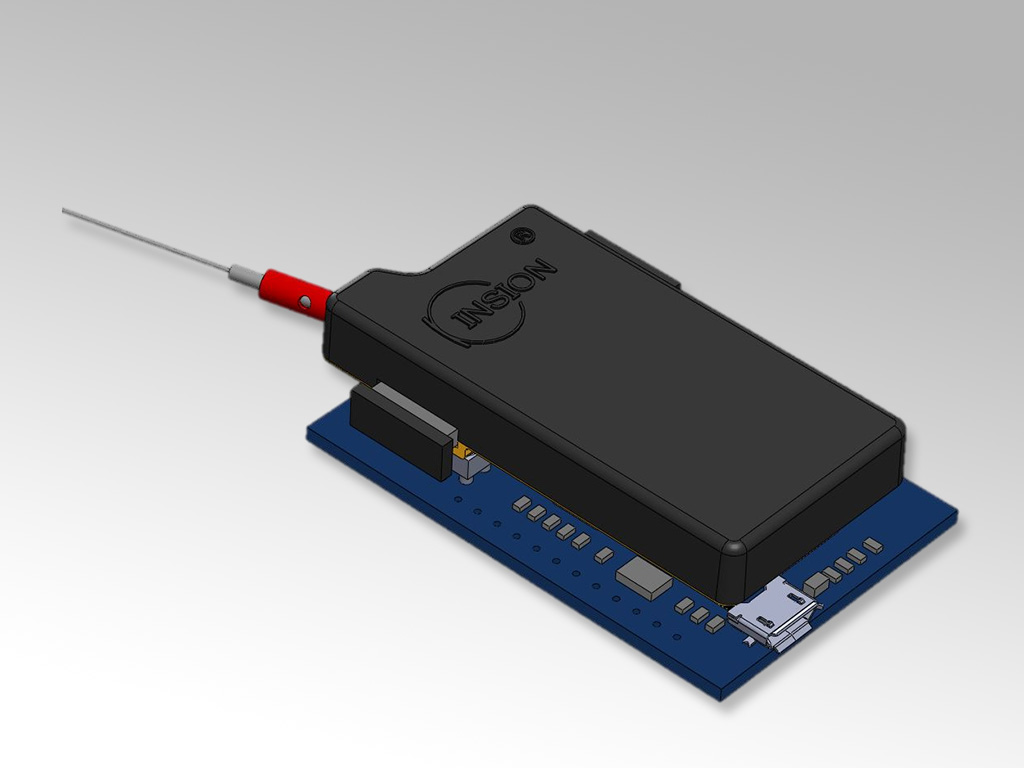

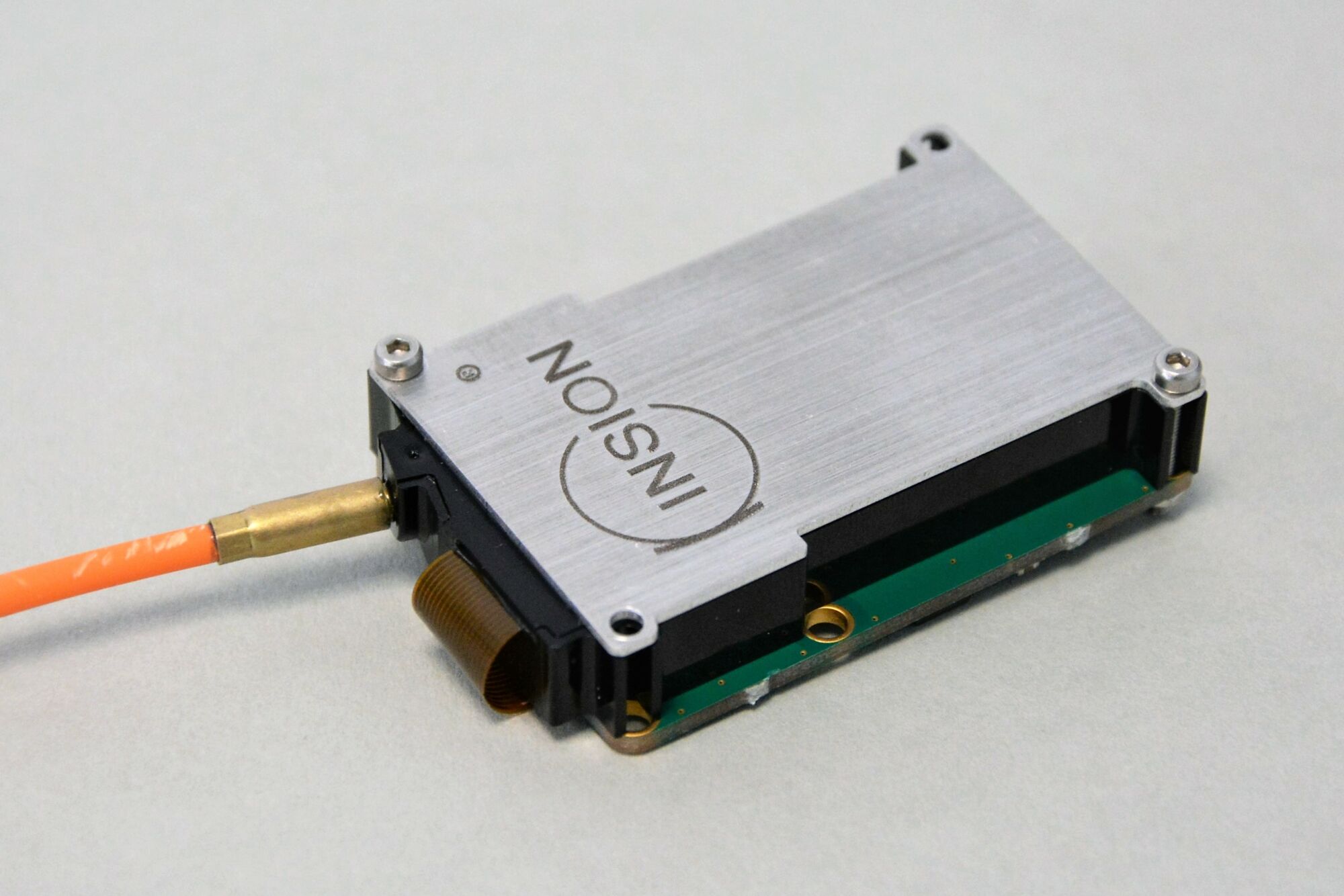

NIR NT
Download PDF datasheet
Technical Data
  • Spectral Range:900 - 1700 nm
    940 - 2000 nm
  • Fiber:Ø 300 / 330 µm; NA = 0.22
  • Spectral Resolution:< 16 nmFWHM / 8.2 nmPixel
  • Stray light Attenuation:> 20dB LWP 1200 ; SWP 1290 (30 dB using SC30)
  • Spectral Accuracy:typ. 2 nm
  • Sensitivity:> 150 E12 cts x nm / Ws at 1500 nm
  • Noise Equivalent Power:2.65 pW 1560nm; Ti10ms
  • Dynamic Range:> 5.000
Additional Data
  • Dimensions (LxWxH):67 x 36 x 22 mm
  • Weight:50g
  • Fiber Length/Finishing:450mm; +50/- 0mm; SMA
  • Detector ArrayCMOS
  • Electronics:16 bit; RS232; USB; TTL Trigger
  • Storage Temperature:- 40°C to +60°C
  • Operating Temperature:0°C to +40°C

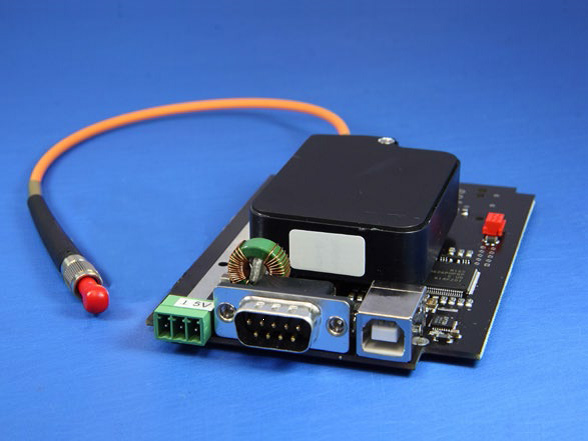

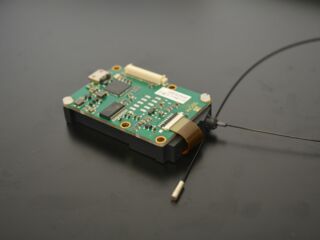

NIR 1.7
Download PDF datasheet
Technical Data
  • Spectral Range:900 - 1700 nm
  • Fiber:Ø 300 / 330 µm; NA = 0.22
  • Spectral Resolution:< 16 nmFWHM / 8.2 nmPixel
  • Stray light Attenuation:> 20dB LWP 1200 ; SWP 1290 (30 dB using SC30)
  • Spectral Accuracy:typ. 2 nm
  • Sensitivity:> 150 E12 cts x nm / Ws at 1500 nm
  • Noise Equivalent Power:2,65 pW 1560nm; Ti10ms
  • Dynamic Range:> 5.000
Additional Data
  • Dimensions (LxWxH):61 x 43 x 14.9 mm
  • Weight:50g
  • Fiber Length/Finishing:450mm; +50/- 0mm; SMA
  • Detector ArrayCMOS
  • Electronics:16 bit; RS232; USB; TTL Trigger
    TE temp. stabil. to +/- 0.03K at ambient ± 5 K temp. range
  • Storage Temperature:- 40°C to +60°C
  • Operating Temperature:0°C to +40°C

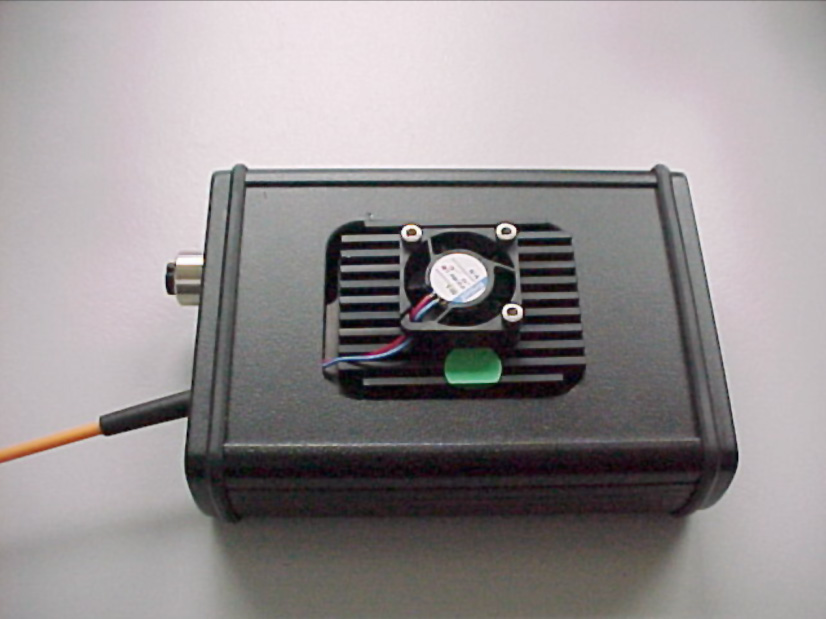

NIR 2.0
Download PDF datasheet
Technical Data
  • Spectral Range:900 - 2000 nm
  • Fiber:Ø 300 / 330 µm; NA = 0.22
  • Spectral Resolution:< 16 nmFWHM / 8.2 nmPixel
  • Stray light Attenuation:> 20dB LWP 1200 ; SWP 1290 (30 dB using SC30)
  • Spectral Accuracy:typ. 2 nm
  • Sensitivity:> 150 E12 cts x nm / Ws at 1500 nm
  • Noise Equivalent Power:2,65 pW 1560nm; Ti10ms
  • Dynamic Range:> 5.000
Additional Data
  • Dimensions (LxWxH):61 x 43 x 14.9 mm
  • Weight:50g
  • Fiber Length/Finishing:450mm; +50/- 0mm; SMA
  • Detector ArrayCMOS
  • Electronics:16 bit; RS232; USB; TTL Trigger
    TE temp. stabil. to +/- 0.03K at ambient ± 5 K temp. range
  • Storage Temperature:- 40°C to +60°C
  • Operating Temperature:0°C to +40°C

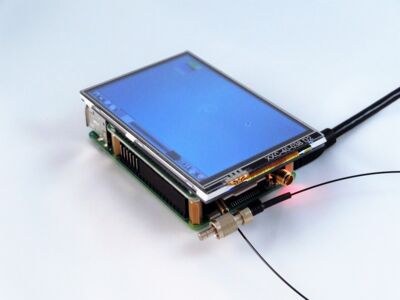

Raspberry SPEGG with touch screen
Technical Data
  • Spectral Range:350 - 850 nm (330 – 1050 nm accessible)
  • Spectral Resolution:< 10 nmFWHM / 3.5 nmPixel
  • Stray light Attenuation:> 17 dB with GG495 at 470 nm (30 dB using SC30)
  • Spectral Accuracy:2 nm (typ. 1 nm)
  • Sensitivity:> 5 E15 cts x nm / Ws at 650 nm
  • Noise Equivalent Power:3 pW 500nm; Ti1s
  • Dynamic Range:> 5.000
Additional Data
  • Dimensions (LxWxH):95 x 60 x 28 mm
  • Weight:150g
  • Detector ArraySCMOS
  • Integrated light sources:1) High pressure Xenon (300 – 1150 nm)
    2) UV LED (260 -280 nm)
  • Memory card:8GBit SD card incl. Demo software in Python
  • Electronics:16 bit; UART
  • Storage Temperature:- 40°C to +60°C
  • Operating Temperature:0°C to +40°C

Micro Spectrometer System

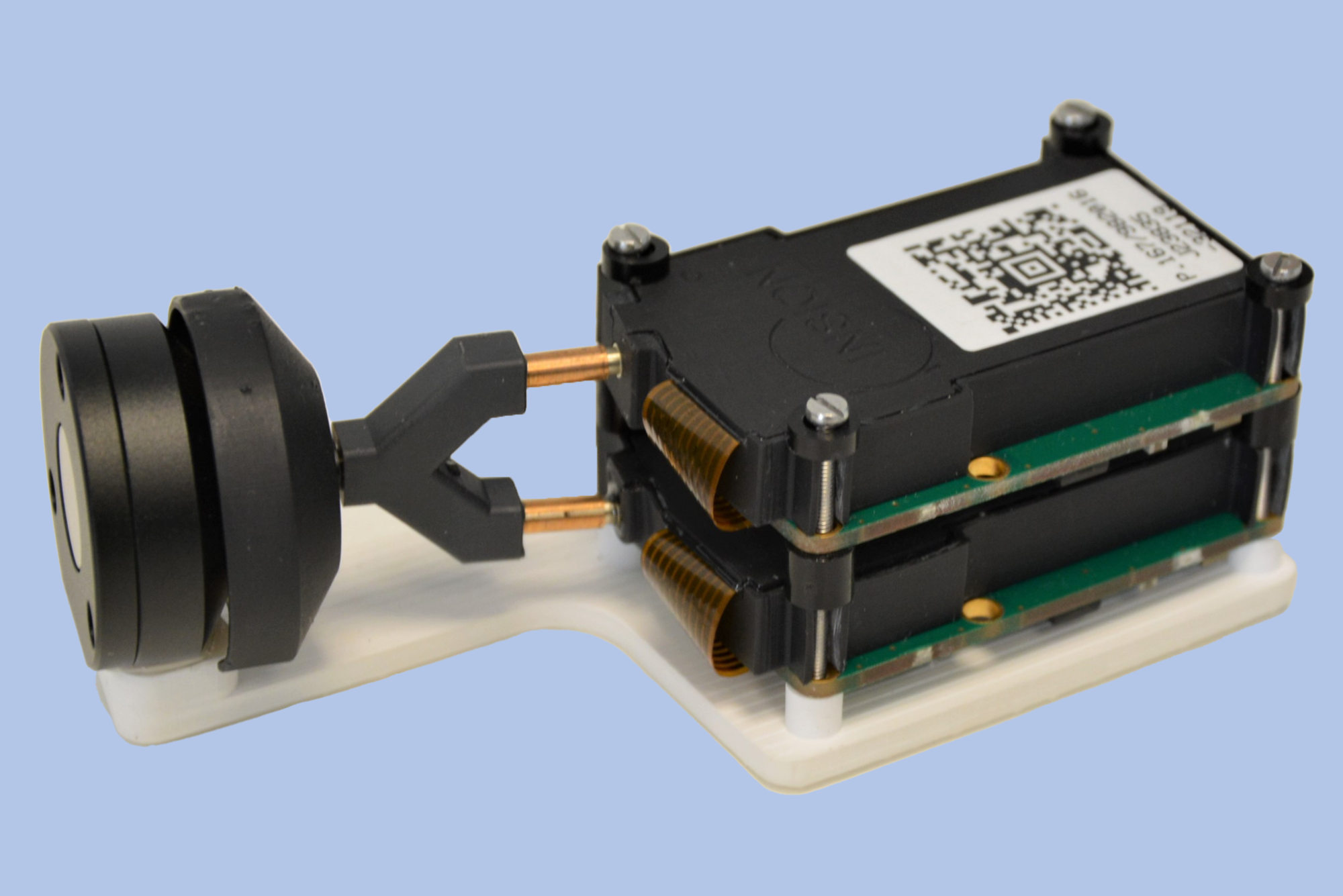

DUAL CHANNEL:

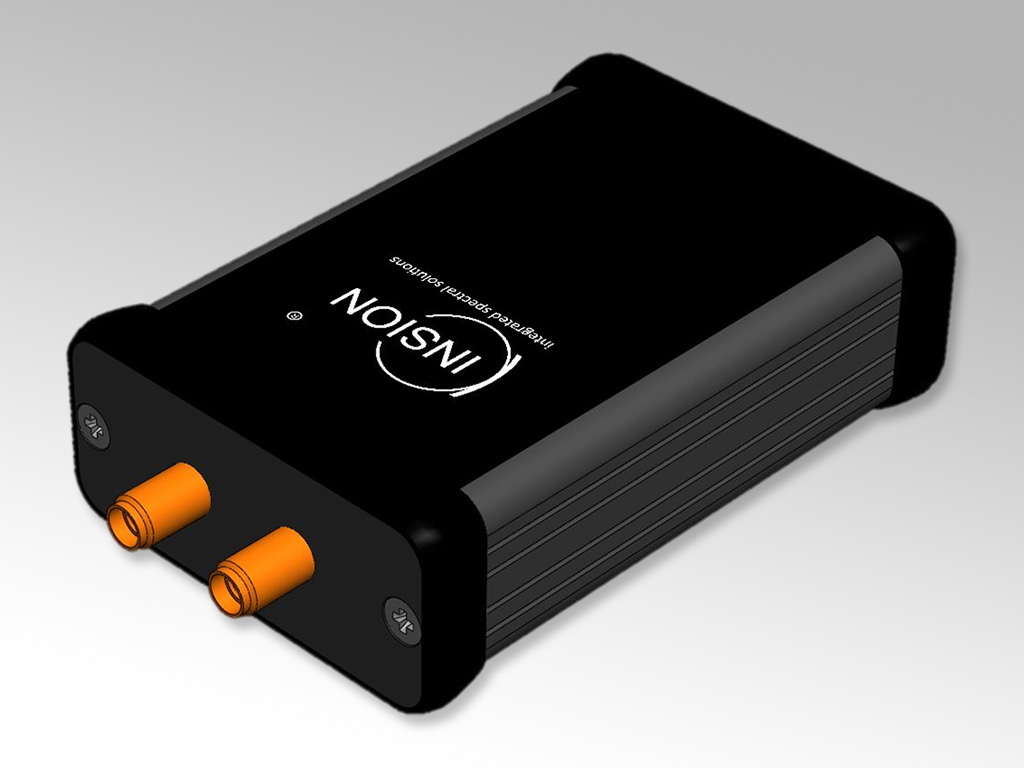

2C UV/VIS
Technical Data
  • Spectral Range:2 x 350 - 1050 nm
  • Spectral Resolution:< 10 nmFWHM
  • Sensitivity:> 20 E15 cts x nm / Ws at 650 nm
  • Optical interface:2 x SMA connector

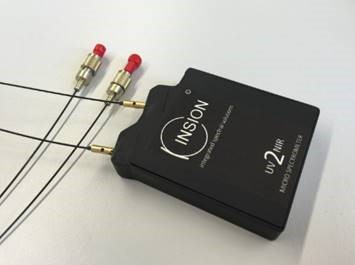

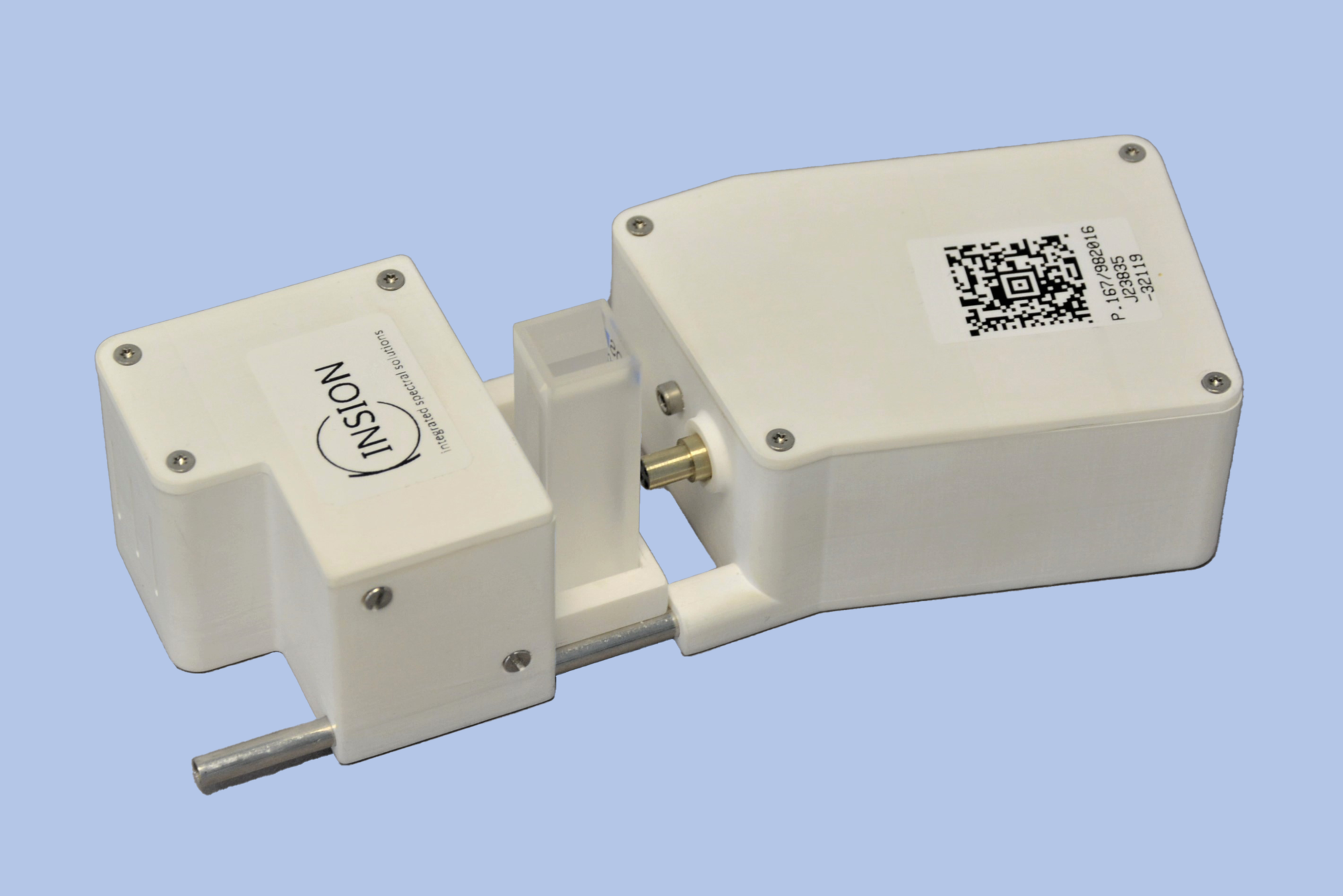

WIDE Range: UV 2 NIR
Download PDF datasheet
Technical Data
  • Spectral Range:200 - 350 nm and 350 - 850 nm
  • Fiber:Ø 300 / 330 µm; NA = 0.22
  • Spectral Resolution:< 5 nmFWHM// 1(UV); 2(VIS) nmPixel
  • Stray light Attenuation:> 17 dB with GG495 at 470 nm (30 dB using SC30)
  • Spectral Accuracy:2 nm (typ. 1 nm)
  • Sensitivity:> 5 E15 cts x nm / Ws at 650 nm
  • Signal to Noise Ratio:≥ 5000 at Tintergration = 2 ms
  • Dynamic Range:> 5.000
Additional Data
  • Dimensions (LxWxH):69.3 x 55 x 13.6mm
  • Weight:48g
  • Fiber Length/Finishing:450mm; +50/- 0mm; SMA
  • Detector Array:SCMOS
  • Electronics:16 bit; UART; USB optional
  • Storage Temperature:- 40°C to +60°C
  • Operating Temperature:0°C to +40°C
UV 2 NIR+
Technical Data
  • Spectral Range:350 - 1700 nm
  • Spectral Resolution:< 10 nmFWHM / < 16 nmFWHM
  • Sensitivity:> 80 / 150 E12 cts x nm / Ws at 650 nm / 1500 nm
  • Optical interface:SMA connector
SNR+UV VIS
Technical Data
  • Spectral Range:350 - 1050 nm
  • Spectral Resolution:< 10 nmFWHM
  • Sensitivity:> 20 E15 cts x nm / Ws at 650 nm
  • Optical interface:SMA connector
